F-Coupler

Downloads

Features

• Allows for easy coupling and uncoupling on standard dimensioned grease fittings
• Absolute grip ensured at angles up to 12 degrees
• 4-jaw grip ensures minimal grease leakage around the F-Nipple
• To disconnect; release input pressure from the Amtec Handpump by opening the black thumb screw, tilt the handpump lightly and rotate while extracting from the Amtec F-Nipple.
• This above procedure ensures a long service life for the F-Coupler and the F-Nipple.

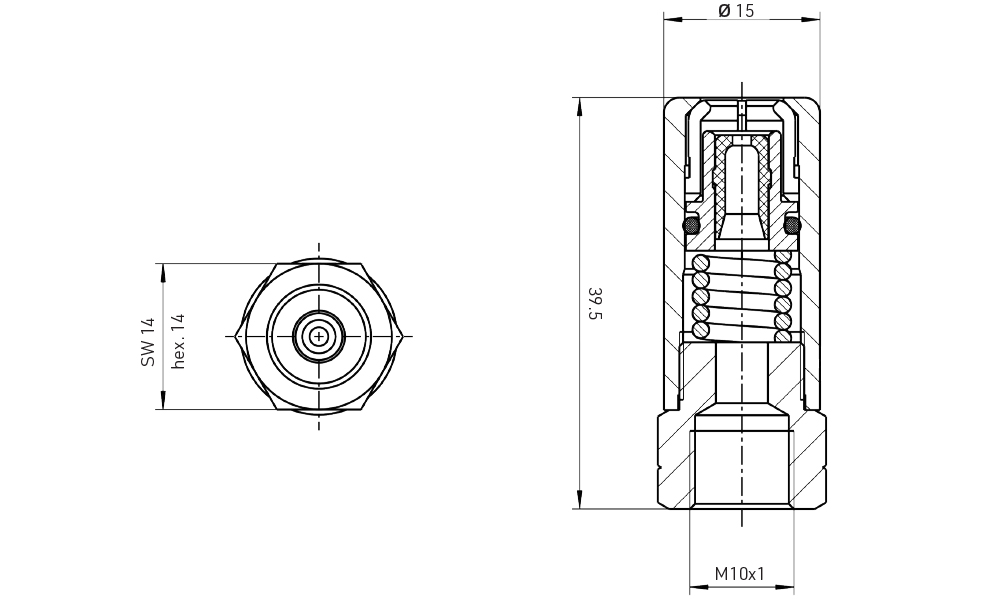

• Maximum operating pressure: 700 bar (10,150 psi)
• External Diameter: 15 mm (0.591”)
• Width Across Flats: 14 mm (0.551”)
• Length: 40 mm (1.575”)
• Internal Thread: M10 x 1.0 p
• Weight: 0.04 Kg (0.09 lbs)

Note: Before installing new F-Couplers, always apply (2) wraps of plumbers Teflon tape over the external thread, or apply liquid thread sealant, and tighten using 14 mm or 9/16” open end wrench.
