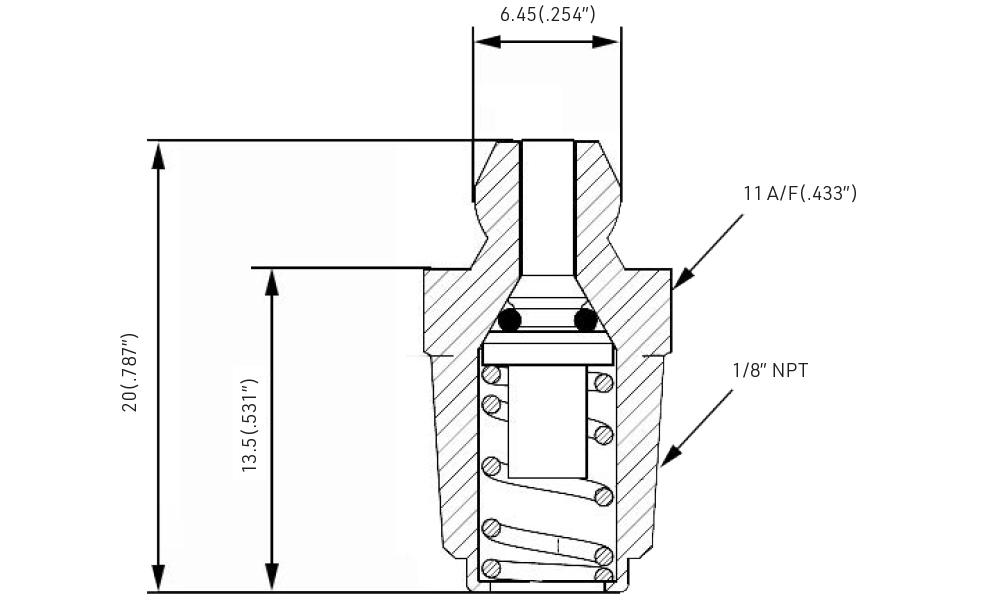

F-Nipple

Downloads

Features

• Hardened steel body
• Internal pin to prevent entry of dirt during operation
• High-strength internal sealing system for long life
• Tip dimensions compatible with many standard, low pressure fittings, allowing the use of low and high pressure grease input connectors as required.
• Always release input pressure at the handpump before attempting to remove the handpump coupler (connector) from the F-Nipple.
• Operating pressure 300 to 700 bar (4350 to 10,150 psi)
• Weight 0.08 Kg (0.18 lbs)

Note: Before installing new F-Nipples, always apply (2) wraps of Teflon tape over the thread, or apply liquid thread sealant, and tighten using 11 mm or 7/16” socket wrench.
