K-Type Nuts

Series K-025.XXX.610

Series K-025.XXX.610

K-Type Nuts

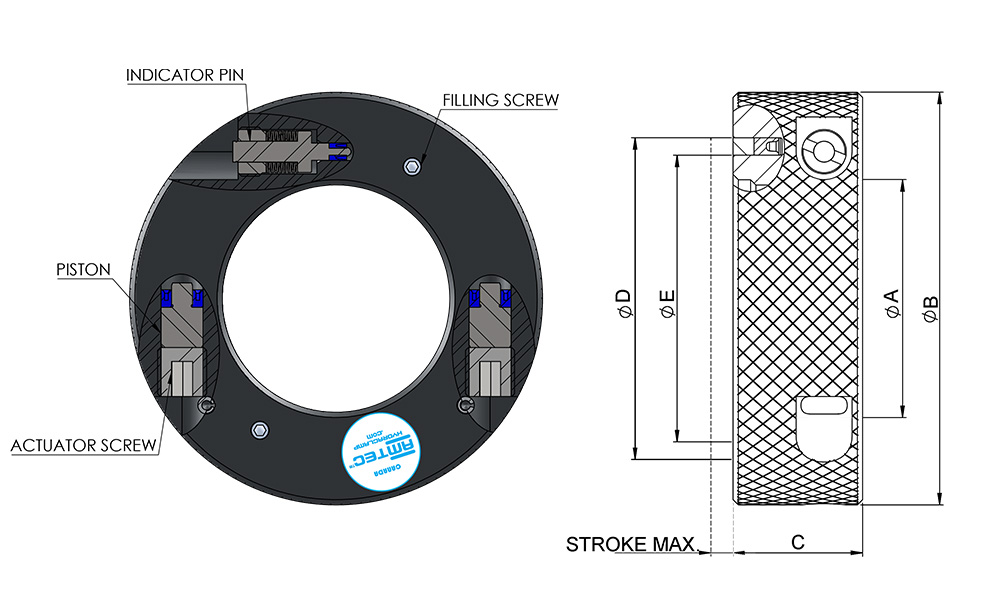

Series K-025.XXX.610 with AXIAL ACTUATOR SCREW & PISTON and INDICATOR PIN

A sealed grease system without pressure release to atmosphere. Actuated by a hand held hex wrench. Axial pistons provide a compact OD. Thrust Ring offers 1 to 4 mm of axial travel. Indicator Pin pops up when full nut force is achieved.

Industries

Slitting Lines
Slitting Lines
Side Trimmers
Side Trimmers
Pickle Lines
Pickle Lines
Utilities
Utilities

Downloads

Refill Instructions Spare Parts Replacement Instructions Operating Instructions Thread Builder Code Side Trimmer Nuts Accessories Series K-025.XXX.610

Features

  • Standard black oxide finish for 120°C max. (250°F)
  • Alloy tool steel body parts
  • Stainless steel, electroless nickel or chromium
  • Plating for optional corrosion resistance
  • Self-aligning annular thrust ring
  • Clean, efficient, hand-operated clamping system
Series K-025.XXX.610
  Max Arbor Thread Size Cannot Exceed Minimum Tool ø Verify diameters D&E contact an uninterrupted suface Select Stroke as Required   Ensure Adquate Force Has Been Selected
Model Max Thread ø Nut Diameter Thrust Ring Size Thrust Ring Stroke Nut Width Clamping Force Weight
  A B D - OD E - ID S C 10Nm - 89in-lb 20Nm - 178in-lb
mm Inch mm Inch mm Inch mm Inch mm Inch mm Inch kN Tons kN Tons KG Pounds
K-025.075.610 30 1.125 75 2.953 52 2.047 44 1.732 1 0.079 30 1.181 30 3 60 6 0.9 2.0
K-025.088.610 42 1.625 88 3.465 65 2.559 55 2.165 1 0.039 35 1.378 42 4 84 8 1.5 3.3
K-025.112.610 52 2.000 112 4.409 84 3.307 72 2.835 2 0.079 36 1.417 66 7 132 13 1.9 4.2
K-025.118.610 68 2.625 118 4.646 92 3.622 82 3.228 2 0.079 37 1.457 62 6 123 12 2.6 5.7
K-025.134.610 80 3.125 134 5.276 110 4.331 100 3.937 2 0.079 38 1.496 74 7 148 15 2.8 6.2
K-025.167.610 100 3.875 167 6.575 125 4.921 110 4.331 2 0.079 45 1.772 83 8 166 17 3.8 8.4
K-025.188.610 120 4.750 188 7.402 150 5.906 135 5.315 2 0.079 45 1.772 76 8 152 15 5.5 12.1
K-025.212.610 140 5.500 212 8.346 175 6.890 155 6.102 2 0.079 48 1.890 117 12 233 23 7.3 16.1
K-025.230.610 160 6.250 230 9.055 200 7.874 180 7.087 2 0.079 50 1.969 90 9 180 18 10.5 23.1
K-025.245.610 180 7.000 245 9.646 222 8.740 202 7.953 2 0.079 50 1.969 100 10 200 20 13.0 28.6
K-025.270.610 200 7.875 270 10.630 230 9.055 215 8.465 2 0.079 50 1.969 105 11 210 21 10.0 22.0
K-025.290-610 220 8.625 290 11.417 255 10.039 235 9.252 2 0.079 50 1.969 115 12 230 23 15.0 33.0
K-025.305-610 230 9.000 305 12.008 280 11.024 260 10.236 2 0.079 50 1.969 127 13 254 25 11.0 24.2

*Actual thrust ring force will vary as much as 25% due to actuator thread friction. To obtain accurate setup pressure, please see Series 550 K-Nuts on page 82.
