Amtec Hydraclamp | Series K-025.XXX.710

K-Type Nuts

Series K-025.XXX.710 with AXIAL ACTUATOR SCREW & PISTON and INDICATOR PIN

A sealed grease system without pressure release to atmosphere. Actuated by a hand held hex wrench. Axial pistons provide a compact OD. Thrust Ring offers 1 to 4 mm of axial travel. Indicator Pin pops up when full nut force is achieved.

Industries

Side Trimmers

Pickle Lines

Utilities

Downloads

Refill Instructions Spare Parts Replacement Instructions Operating Instructions Thread Builder Code Side Trimmer Nuts Accessories Series K-025.XXX.710

Features

Standard black oxide finish for 120°C max. (250°F)
Alloy tool steel body parts
Stainless steel, electroless nickel or chromium
Plating for optional corrosion resistance
Self-aligning annular thrust ring
Clean, efficient, hand-operated clamping system

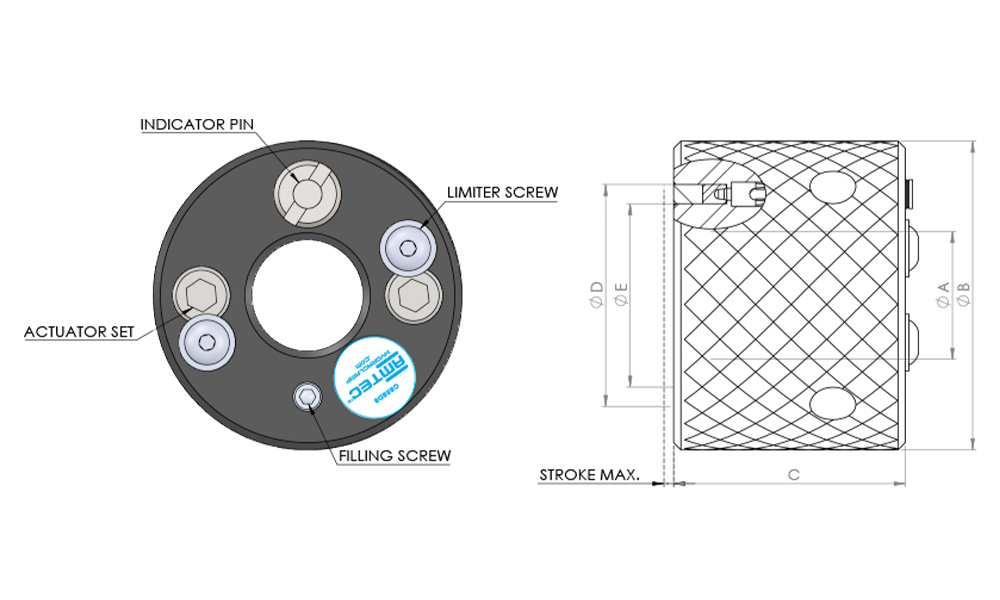

	Max Arbor Thread Size		Cannot Exceed Minimum Tool ø		Verify diameters D&E contact an uninterrupted suface				Select Stroke as Required				Ensure Adquate Force Has Been Selected
Model	Max Thread ø		Nut Diameter		Thrust Ring Size				Thrust Ring Stroke		Nut Width		Clamping Force				Weight
	A		B		D - OD		E - ID		S		C		10Nm - 89in-lb		20Nm - 178in-lb
	mm	Inch	mm	Inch	mm	Inch	mm	Inch	mm	Inch	mm	Inch	kN	Tons	kN	Tons	KG	Pounds
K-025.056.710	24	0.875	56	2.205	40	1.574	32	1.260	2	0.079	48	1.890	23	2.3	45	4.5	0.7	1.5
K-025.064.710	30	1.125	64	2.520	46	1.811	38	1.496	2	0.079	48	1.890	30	3	60	6	0.9	2.0
K-025.070.710	36	1.375	70	2.756	52	2.047	44	1.732	2	0.079	48	1.890	30	3	60	6	1.0	2.2
K-025.080.710	42	1.625	80	3.150	62	2.441	50	1.969	2	0.079	56	2.205	48	5	95	9.5	1.6	3.5
K-025.072.710	52	2.000	90	3.543	72	2.835	60	2.362	2	0.079	62	2.441	56	6	112	11	2.0	4.4
K-025.092.710	68	2.625	110	4.331	92	3.622	82	3.228	2	0.079	62	2.441	62	6	123	12	2.5	5.5
K-025.100.710	80	3.125	120	4.724	100	3.937	88	3.465	2	0.079	70	2.756	80	8	160	16	3.3	7.3
K-025.148.710	100	3.875	148	5.827	125	4.921	110	4.331	2	0.079	80	3.150	83	9	166	17	7.2	15.8
K-025.160.710	100	3.875	160	6.299	125	4.921	110	4.331	4	0.157	98	3.858	55	6	110	11	10.0	22.0

*Actual thrust ring force will vary as much as 25% due to actuator thread friction. To obtain accurate setup pressure, please see Series 550 K-Nuts on page 82.
